vtLastMouse Class Reference

#include <Engine.h>

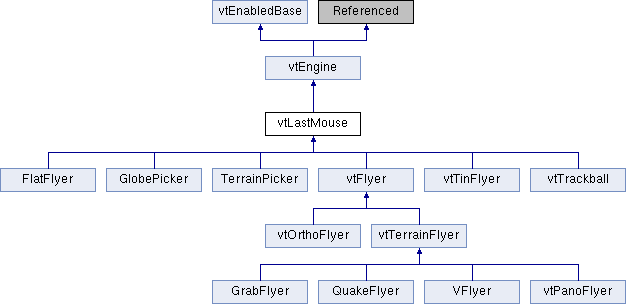

Inheritance diagram for vtLastMouse:

Public Member Functions
void	OnMouse (vtMouseEvent &event)
	Virtual handler, to catch mouse events, can be overridden by your engine class.
void	GetNormalizedMouseCoords (float &mx, float &my)
Public Member Functions inherited from vtEngine
osg::Referenced *	GetTarget (uint which=0)
void	AddTarget (osg::Referenced *ptr)
void	SetTarget (osg::Referenced *ptr)
void	RemoveTarget (osg::Referenced *ptr)
uint	NumTargets ()
	Return the number of targets for this engine.
void	setName (const char *str)
const char *	getName ()
virtual void	OnKey (int key, int flags)
	Virtual handler, to catch keyboard events, can be overridden by your engine class.
virtual void	OnWindowSize (int width, int height)
	Virtual handler, to catch resize events, can be overridden by your engine class.
virtual void	Eval ()
void	SetWindow (vtWindow *pWin)
vtWindow *	GetWindow ()
void	AddChild (vtEngine *pEngine)
void	RemoveChild (vtEngine *pEngine)
vtEngine *	GetChild (uint i)
uint	NumChildren ()
void	AddChildrenToList (vtArray< vtEngine * > &list, bool bEnabledOnly)
Public Member Functions inherited from vtEnabledBase
virtual void	SetEnabled (bool bOn)
bool	GetEnabled ()

Public Attributes
int	m_buttons
IPoint2	m_pos
int	m_flags

Additional Inherited Members
Protected Attributes inherited from vtEngine
vtArray< osg::Referenced * >	m_Targets
std::vector< vtEnginePtr >	m_Children
vtString	m_strName
vtWindow *	m_pWindow

Detailed Description

This simple engine extends the base class vtEngine with the ability to remember the last state of the mouse. This is useful for engines which simply need to know mouse state (cursor position and button state). They can simply subclass from vtLastMouse and use the inherited fields rather than having to catch mouse events.

Member Function Documentation

void vtLastMouse::GetNormalizedMouseCoords	(	float &	mx,
		float &	my
	)

Returns the mouse coordinates in the window, normalized such that X and Y range from -1 to 1 (left to right, top to bottom across the window.

Member Data Documentation

int vtLastMouse::m_buttons

The state of the mouse buttons

int vtLastMouse::m_flags

Last known state of the modifier flags

IPoint2 vtLastMouse::m_pos

The location of the mouse cursor

---

The documentation for this class was generated from the following files:

• D:/job/3kb/gelistirme/umasoft/vtp-src/VTP/TerrainSDK/vtlib/core/Engine.h
• D:/job/3kb/gelistirme/umasoft/vtp-src/VTP/TerrainSDK/vtlib/core/Engine.cpp
