SRTerrain Class Reference
Dynamic Terrain (CLOD)

#include <SRTerrain.h>

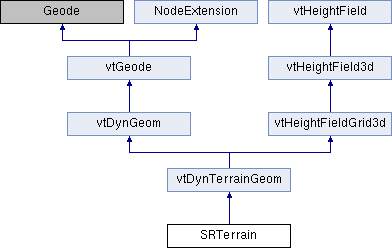

Inheritance diagram for SRTerrain:
vtDynTerrainGeom vtDynGeom vtHeightFieldGrid3d vtGeode vtHeightField3d NodeExtension vtHeightField

Public Member Functions

DTErr Init (const vtElevationGrid *pGrid, float fZScale)

void DoRender ()

void DoCulling (const vtCamera *pCam)

float GetElevation (int iX, int iZ, bool bTrue=false) const

void SetElevation (int iX, int iZ, float fValue, bool bTrue=false)

void GetWorldLocation (int iX, int iZ, FPoint3 &p, bool bTrue=false) const

void SetVerticalExag (float fExag)

float GetVerticalExag () const

void SetPolygonTarget (int iCount)

DTErr ReInit (const vtElevationGrid *pGrid)

void LoadSingleMaterial ()

- Public Member Functions inherited from vtDynTerrainGeom
virtual void Init2 ()

DTErr BasicInit (const vtElevationGrid *pGrid)

int GetPolygonTarget ()

int GetNumDrawnTriangles ()

void SetDetailMaterial (vtMaterial *pApp, float fTiling, float fDistance)

void EnableDetail (bool bOn)

bool GetDetail ()

void SetupTexGen (float fTiling)

void DisableTexGen ()

void DoCalcBoundBox (FBox3 &box)

void DoCull (const vtCamera *pCam)

bool FindAltitudeOnEarth (const DPoint2 &p, float &fAltitude, bool bTrue=false) const

bool FindAltitudeAtPoint (const FPoint3 &p3, float &fAltitude, bool bTrue=false, int iCultureFlags=0, FPoint3 *vNormal=NULL) const

void SetCull (bool bOnOff)

void CullOnce ()

void PreRender () const

void PostRender () const

- Public Member Functions inherited from vtDynGeom
int IsVisible (const FSphere &sphere) const

int IsVisible (const FPoint3 &point0, const FPoint3 &point1, const FPoint3 &point2, const float fTolerance=0.0f) const

int IsVisible (const FPoint3 &point, float radius)

bool IsVisible (const FPoint3 &point) const

void ApplyMaterial (vtMaterial *mat)

- Public Member Functions inherited from vtGeode
vtGeode * CloneGeode ()

void CloneFromGeode (const vtGeode *rhs)

void AddMesh (vtMesh *pMesh, int iMatIdx)

void RemoveMesh (vtMesh *pMesh)

void AddTextMesh (vtTextMesh *pMesh, int iMatIdx)

uint GetNumMeshes () const

vtMesh * GetMesh (int i) const

vtTextMesh * GetTextMesh (int i) const

virtual void SetMaterials (const class vtMaterialArray *mats)

const vtMaterialArray * GetMaterials () const

vtMaterial * GetMaterial (int idx)

void SetMeshMatIndex (vtMesh *pMesh, int iMatIdx)

- Public Member Functions inherited from NodeExtension
void SetEnabled (bool bOn)

bool GetEnabled () const

void SetCastShadow (bool b)
 Set this node to cast a shadow, if it is under a vtShadow node. Default is false.

bool GetCastShadow ()
 Get whether this node casts a shadow.

void GetBoundSphere (FSphere &sphere, bool bGlobal=false)
 Get the Bounding Sphere of the node.

void SetOsgNode (osg::Node *n)

- Public Member Functions inherited from vtHeightFieldGrid3d
void Initialize (const LinearUnits units, const DRECT &earthextents, float fMinHeight, float fMaxHeight, int cols, int rows)

virtual void SetEarthExtents (const DRECT &ext)

bool CastRayToSurface (const FPoint3 &point, const FPoint3 &dir, FPoint3 &result) const

bool LineOfSight (const FPoint3 &point1, const FPoint3 &point2) const

DPoint2 GetSpacing () const

FPoint2 GetWorldSpacing () const

void GetDimensions (int &nColumns, int &nRows) const

int NumColumns ()

int NumRows ()

void EarthToGrid (const DPoint2 &epos, IPoint2 &ipos)

void WorldToGrid (const FPoint3 &pos, IPoint2 &ipos)

float GetInterpolatedElevation (double findex_x, double findex_y) const

int FindNumUnknown ()

bool ColorDibFromElevation (vtBitmapBase *pBM, const ColorMap *cmap, int iGranularity, const RGBAi &nodata, bool progress_callback(int)=NULL)

bool ColorDibFromTable (vtBitmapBase *pBM, std::vector< RGBi > &table, float fMin, float fMax, const RGBAi &nodata, bool progress_callback(int)=NULL)

void ShadeDibFromElevation (vtBitmapBase *pBM, const FPoint3 &light_dir, float fLightFactor, float fAmbient=0.1f, float fGamma=1.0f, bool bTrue=false, bool progress_callback(int)=NULL)

void ShadeQuick (vtBitmapBase *pBM, float light_factor, bool bTrue=false, bool progress_callback(int)=NULL)

void ShadowCastDib (vtBitmapBase *pBM, const FPoint3 &ight_dir, float fLightFactor, float fAmbient, bool progress_callback(int)=NULL)

- Public Member Functions inherited from vtHeightField3d
void Initialize (const LinearUnits units, const DRECT &earthextents, float fMinHeight, float fMaxHeight)

int PointIsAboveTerrain (const FPoint3 &p) const

bool ConvertEarthToSurfacePoint (const DPoint2 &epos, FPoint3 &p3, int iCultureFlags=0, bool bTrue=false)

bool ContainsWorldPoint (float x, float z)

void GetCenter (FPoint3 &center)

void SetCulture (CultureExtension *ext)

- Public Member Functions inherited from vtHeightField
void Initialize (const DRECT &extents, float fMinHeight, float fMaxHeight)

bool ContainsEarthPoint (const DPoint2 &p, bool bInclusive=false) const

DRECT & GetEarthExtents ()

const DRECT & GetEarthExtents () const

void GetHeightExtents (float &fMinHeight, float &fMaxHeight) const


Public Attributes

int m_iBlockSize

float m_fResolution

float m_fHResolution

float m_fLResolution

- Public Attributes inherited from vtDynTerrainGeom
int m_iTotalTriangles

int m_iDrawnTriangles

- Public Attributes inherited from vtDynGeom
FPlane m_cullPlanes [6]

- Public Attributes inherited from vtGeode
osg::ref_ptr< const
vtMaterialArray > 		m_pMaterialArray

- Public Attributes inherited from NodeExtension
osg::Node * m_pNode

bool m_bCastShadow


Protected Member Functions

void RenderSurface ()

void RenderPass ()


Additional Inherited Members

- Protected Attributes inherited from vtDynTerrainGeom
float * m_fXLookup

float * m_fZLookup

int m_iPolygonTarget

bool m_bCulleveryframe

bool m_bCullonce

float m_fDetailTiling

float m_fDetailDistance

bool m_bDetailTexture

vtMaterial * m_pDetailMat


Detailed Description

The SRTerrain class implements Stefan Roettger's algorithm for regular-grid terrain LOD. It was adapted directly from his sample implementation and correspondence with him.

Member Function Documentation

void SRTerrain::SetPolygonTarget ( int  iCount)
virtual

Set the polygon target, which is the number of polygons (generally triangles) which the CLOD algorithm will try to maintain.

Reimplemented from vtDynTerrainGeom.
