vtDynTerrainGeom Class Referenceabstract
Dynamic Terrain (CLOD)

#include <DynTerrain.h>

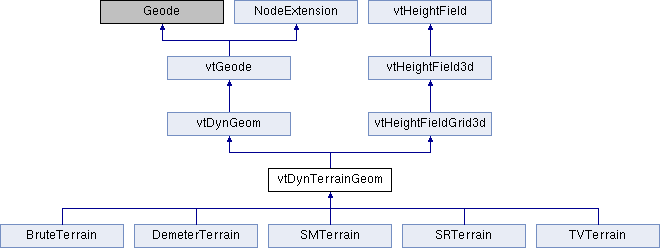

Inheritance diagram for vtDynTerrainGeom:
vtDynGeom vtHeightFieldGrid3d vtGeode vtHeightField3d NodeExtension vtHeightField BruteTerrain DemeterTerrain SMTerrain SRTerrain TVTerrain

Public Member Functions

virtual DTErr Init (const vtElevationGrid *pGrid, float fZScale)=0

virtual void Init2 ()

DTErr BasicInit (const vtElevationGrid *pGrid)

virtual void SetVerticalExag (float fExag)

virtual float GetVerticalExag () const =0

virtual void SetPolygonTarget (int iPolygonCount)

int GetPolygonTarget ()

int GetNumDrawnTriangles ()

void SetDetailMaterial (vtMaterial *pApp, float fTiling, float fDistance)

void EnableDetail (bool bOn)

bool GetDetail ()

void SetupTexGen (float fTiling)

void DisableTexGen ()

void DoCalcBoundBox (FBox3 &box)

void DoCull (const vtCamera *pCam)

bool FindAltitudeOnEarth (const DPoint2 &p, float &fAltitude, bool bTrue=false) const

bool FindAltitudeAtPoint (const FPoint3 &p3, float &fAltitude, bool bTrue=false, int iCultureFlags=0, FPoint3 *vNormal=NULL) const

virtual void DoCulling (const vtCamera *pCam)=0

virtual void SetElevation (int i, int j, float fValue, bool bTrue=false)

void SetCull (bool bOnOff)

void CullOnce ()

void PreRender () const

void PostRender () const

- Public Member Functions inherited from vtDynGeom
int IsVisible (const FSphere &sphere) const

int IsVisible (const FPoint3 &point0, const FPoint3 &point1, const FPoint3 &point2, const float fTolerance=0.0f) const

int IsVisible (const FPoint3 &point, float radius)

bool IsVisible (const FPoint3 &point) const

void ApplyMaterial (vtMaterial *mat)

virtual void DoRender ()=0

- Public Member Functions inherited from vtGeode
vtGeode * CloneGeode ()

void CloneFromGeode (const vtGeode *rhs)

void AddMesh (vtMesh *pMesh, int iMatIdx)

void RemoveMesh (vtMesh *pMesh)

void AddTextMesh (vtTextMesh *pMesh, int iMatIdx)

uint GetNumMeshes () const

vtMesh * GetMesh (int i) const

vtTextMesh * GetTextMesh (int i) const

virtual void SetMaterials (const class vtMaterialArray *mats)

const vtMaterialArray * GetMaterials () const

vtMaterial * GetMaterial (int idx)

void SetMeshMatIndex (vtMesh *pMesh, int iMatIdx)

- Public Member Functions inherited from NodeExtension
void SetEnabled (bool bOn)

bool GetEnabled () const

void SetCastShadow (bool b)
 Set this node to cast a shadow, if it is under a vtShadow node. Default is false.

bool GetCastShadow ()
 Get whether this node casts a shadow.

void GetBoundSphere (FSphere &sphere, bool bGlobal=false)
 Get the Bounding Sphere of the node.

void SetOsgNode (osg::Node *n)

- Public Member Functions inherited from vtHeightFieldGrid3d
void Initialize (const LinearUnits units, const DRECT &earthextents, float fMinHeight, float fMaxHeight, int cols, int rows)

virtual void SetEarthExtents (const DRECT &ext)

bool CastRayToSurface (const FPoint3 &point, const FPoint3 &dir, FPoint3 &result) const

bool LineOfSight (const FPoint3 &point1, const FPoint3 &point2) const

DPoint2 GetSpacing () const

FPoint2 GetWorldSpacing () const

void GetDimensions (int &nColumns, int &nRows) const

int NumColumns ()

int NumRows ()

void EarthToGrid (const DPoint2 &epos, IPoint2 &ipos)

void WorldToGrid (const FPoint3 &pos, IPoint2 &ipos)

float GetInterpolatedElevation (double findex_x, double findex_y) const

int FindNumUnknown ()

virtual float GetElevation (int iX, int iZ, bool bTrue=false) const =0

virtual void GetWorldLocation (int i, int j, FPoint3 &loc, bool bTrue=false) const =0

bool ColorDibFromElevation (vtBitmapBase *pBM, const ColorMap *cmap, int iGranularity, const RGBAi &nodata, bool progress_callback(int)=NULL)

bool ColorDibFromTable (vtBitmapBase *pBM, std::vector< RGBi > &table, float fMin, float fMax, const RGBAi &nodata, bool progress_callback(int)=NULL)

void ShadeDibFromElevation (vtBitmapBase *pBM, const FPoint3 &light_dir, float fLightFactor, float fAmbient=0.1f, float fGamma=1.0f, bool bTrue=false, bool progress_callback(int)=NULL)

void ShadeQuick (vtBitmapBase *pBM, float light_factor, bool bTrue=false, bool progress_callback(int)=NULL)

void ShadowCastDib (vtBitmapBase *pBM, const FPoint3 &ight_dir, float fLightFactor, float fAmbient, bool progress_callback(int)=NULL)

- Public Member Functions inherited from vtHeightField3d
void Initialize (const LinearUnits units, const DRECT &earthextents, float fMinHeight, float fMaxHeight)

int PointIsAboveTerrain (const FPoint3 &p) const

bool ConvertEarthToSurfacePoint (const DPoint2 &epos, FPoint3 &p3, int iCultureFlags=0, bool bTrue=false)

bool ContainsWorldPoint (float x, float z)

void GetCenter (FPoint3 &center)

void SetCulture (CultureExtension *ext)

- Public Member Functions inherited from vtHeightField
void Initialize (const DRECT &extents, float fMinHeight, float fMaxHeight)

bool ContainsEarthPoint (const DPoint2 &p, bool bInclusive=false) const

DRECT & GetEarthExtents ()

const DRECT & GetEarthExtents () const

void GetHeightExtents (float &fMinHeight, float &fMaxHeight) const


Public Attributes

int m_iTotalTriangles

int m_iDrawnTriangles

- Public Attributes inherited from vtDynGeom
FPlane m_cullPlanes [6]

- Public Attributes inherited from vtGeode
osg::ref_ptr< const
vtMaterialArray > 		m_pMaterialArray

- Public Attributes inherited from NodeExtension
osg::Node * m_pNode

bool m_bCastShadow


Protected Attributes

float * m_fXLookup

float * m_fZLookup

int m_iPolygonTarget

bool m_bCulleveryframe

bool m_bCullonce

float m_fDetailTiling

float m_fDetailDistance

bool m_bDetailTexture

vtMaterial * m_pDetailMat

- Protected Attributes inherited from vtDynGeom
OsgDynMesh * m_pDynMesh

- Protected Attributes inherited from vtHeightFieldGrid3d
int m_iColumns

int m_iRows

float m_fXStep

float m_fZStep

double m_dXStep

double m_dYStep

- Protected Attributes inherited from vtHeightField3d
float m_fDiagonalLength

CultureExtension * m_pCulture

- Protected Attributes inherited from vtHeightField
float m_fMinHeight

float m_fMaxHeight

DRECT m_EarthExtents


Additional Inherited Members

- Protected Member Functions inherited from vtHeightField3d
void UpdateWorldExtents ()


Detailed Description

This class provides a framework for implementing any kind of dynamic geometry for a heightfield terrain grid. It is the parent class which contains common fuctionality used by each of the terrain CLOD implementations.

Member Function Documentation

DTErr vtDynTerrainGeom::BasicInit ( const vtElevationGrid *  pGrid)

Sets up the vtDynTerrainGeom object. The units, extents, height range, grid dimensions and other properties are copied from the supplied elevation grid.

This is generally called from the Init() method of a subclass.

bool vtDynTerrainGeom::FindAltitudeAtPoint ( const FPoint3 &  p3,
float &  fAltitude,
bool  bTrue = false,
int  iCultureFlags = 0,
FPoint3 *  vNormal = NULL
) const
virtual

Given a point in world coordinates, determine the elevation at that point.

Parameters
p3The point to test. Only the X and Z values are used.
fAltitudeThe resulting elevation at that point, by reference.
bTrueTrue to test true elevation. False to test the displayed elevation (possibly exaggerated.)
iCultureFlagsPass 0 to test only the heightfield itself, non-zero to test any culture objects which may be sitting on the heightfield. Values include:
  • CE_STRUCTURES Test structures on the ground.
  • CE_ROADS Test roads on the ground.
  • CE_ALL Test everything on the ground.
vNormalIf you supply a pointer to a vector, it will be set to the upward-pointing surface normal at the ground point.
Returns
true if successful, false if there was nothing found at that point.

Implements vtHeightField3d.

int vtDynTerrainGeom::GetNumDrawnTriangles ( )

Return the number of triangles that were rendered by this dynamic terrain last frame.

int vtDynTerrainGeom::GetPolygonTarget ( )

Get the polygon target, which is the number of polygons (generally triangles) which the CLOD algorithm will try to maintain.

void vtDynTerrainGeom::SetPolygonTarget ( int  iCount)
virtual

Set the polygon target, which is the number of polygons (generally triangles) which the CLOD algorithm will try to maintain.

Reimplemented in SRTerrain.

The documentation for this class was generated from the following files:
